The TCM440 Kit is a standalone controller kit for the Dodge 4 speed automatics including the 42RE, 44RE, 46RE and 47RE transmissions and will also work on the RH series. This is a full manual controller with direct control over Gear selection and TCC lock. Requires no programming – Plug and Play. Easily connect the input wires directly to the controller with the new set screw terminal block!

Will hold in any gear selected! **

You can manually Lock the Torque Converter Clutch (TCC) with the Yellow button in 2nd, 3rd and 4th gear!

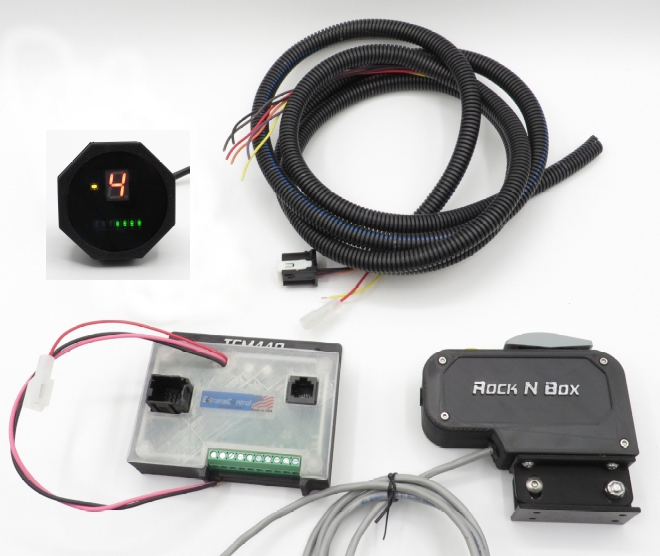

Includes:

• The TCM440 High Speed Controller.
• Newly updated Rock-N-Box for a quick and discrete shifts.
• Now with adjustable temperature compensation for 2nd gear engage. **

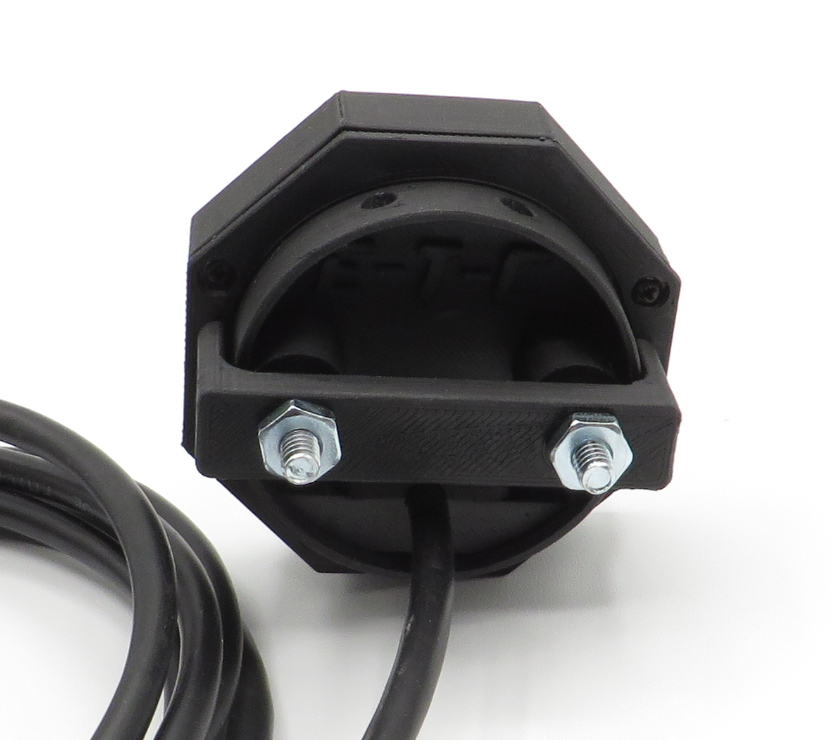

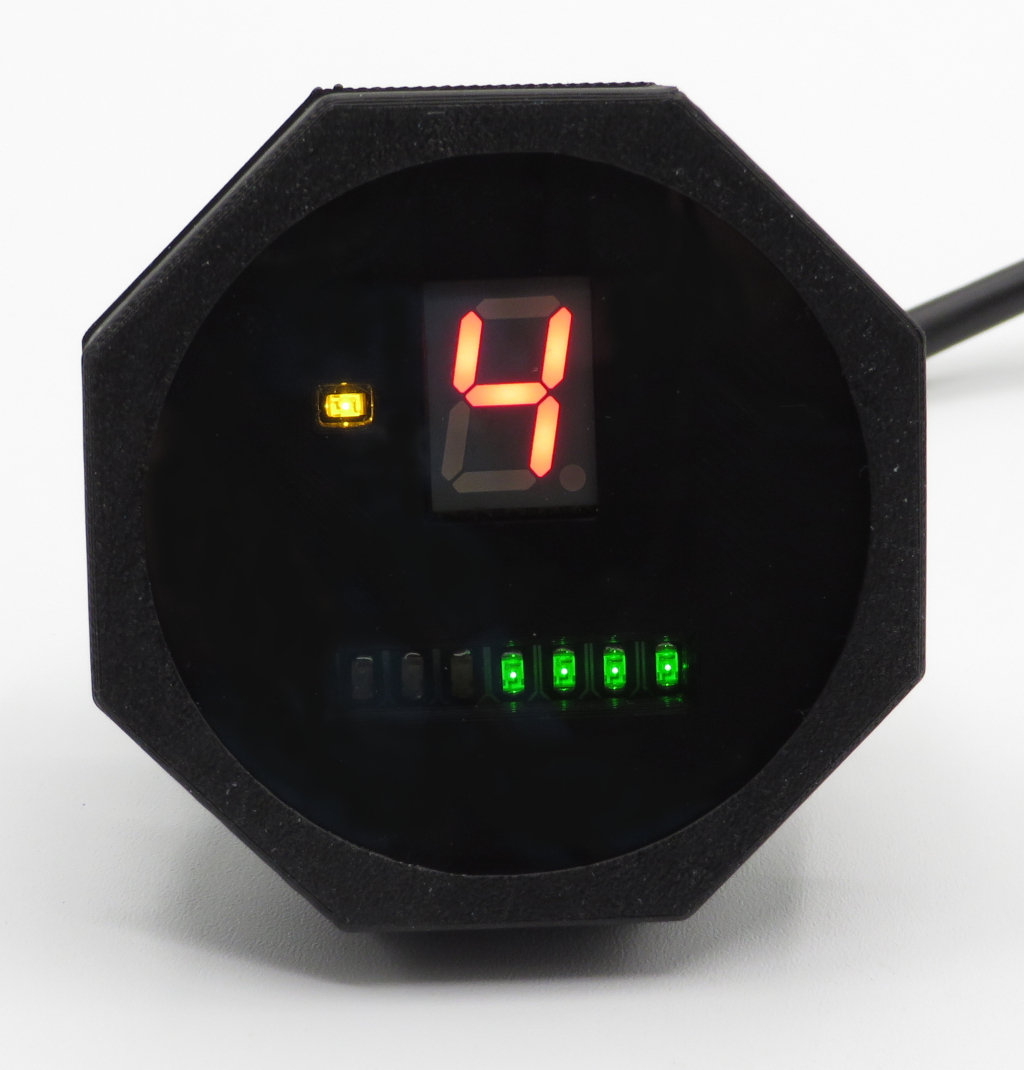

• E-TransControl proprietary 2″ Digital Gauge with Gear, TCC lock and GP level indicators.
• Simply set a jumper to convert it for use on a RH series transmission for O/D and TCC only.
• Full Color Instructions and wiring diagram.
• Also includes a 6′ transmission wire harness made from TXL high temp automotive wire (transmission connector sold separately).

Note:   ** applies to RE series only.
